United States of America
9"/98 (22.9 cm) Mark 1
Updated 30 October 2006

Presumably inspired by the German "Paris Gun" of World War I, this experimental weapon was converted from a 14"/50 (35.6 cm) gun by lengthening it with a hoop of alloy steel to 900 inches (22.860 m) and installing a heavy alloy-steel liner.  The chamber volume was equivalent to that used for the 14" (35.6 cm) guns and the rifling was to be increasing RH from 1 in 48 to 1 in 45.  Weight with breech block was 209,429 lbs. (94,996 kg).  This weapon was designed to fire a 275 lbs. (125 kg) projectile at a muzzle velocity of 5,000 fps (1,524 mps).  The gun was almost completely finished except for the rifling when the project was cancelled about 1919.

A reduced-scale version of this weapon was the 3"/105 (7.62 cm) Mark 16.

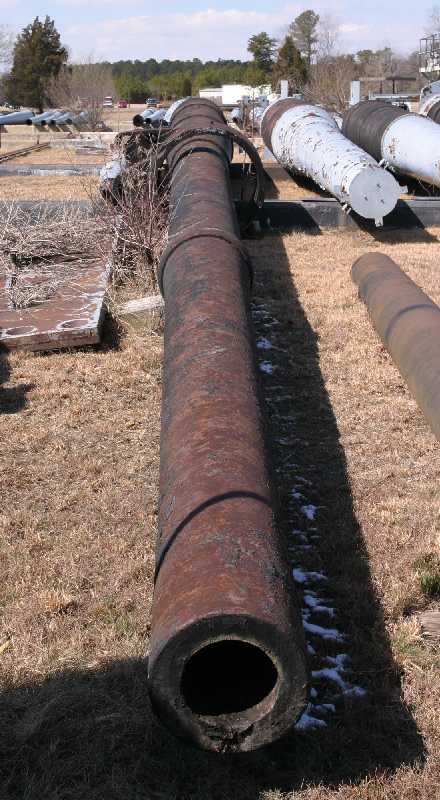

9"/98 (22.9 cm) Mark 1 as it appears in March 2005 at the Naval Surface Warfare Center in Dahlgren, Virginia
Note that this gun was never rifled
Photograph copyrighted by NavWeaps.com

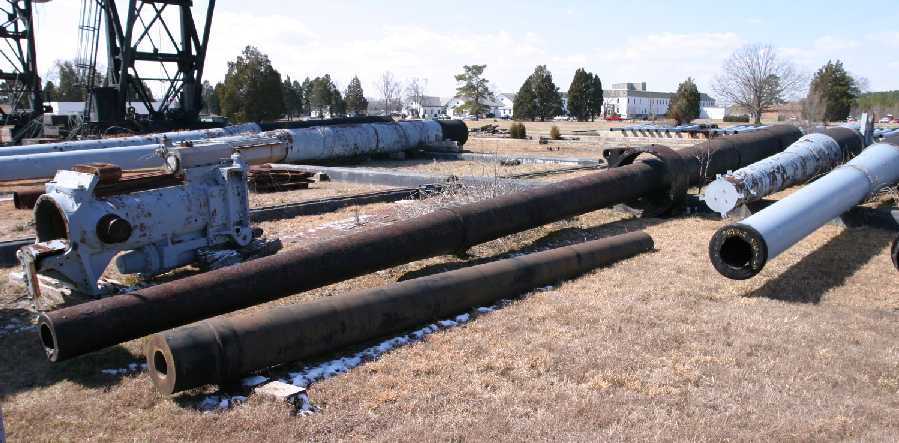

The extra-long length of this gun is amply illustrated in this picture
Photograph copyrighted by NavWeaps.com

.
Data from
"US Naval Weapons" by Norman Friedman
"A Treatise on Rifling of Guns" by Carl F. Jeansén
---
Special help from Leo Fischer and James P.
