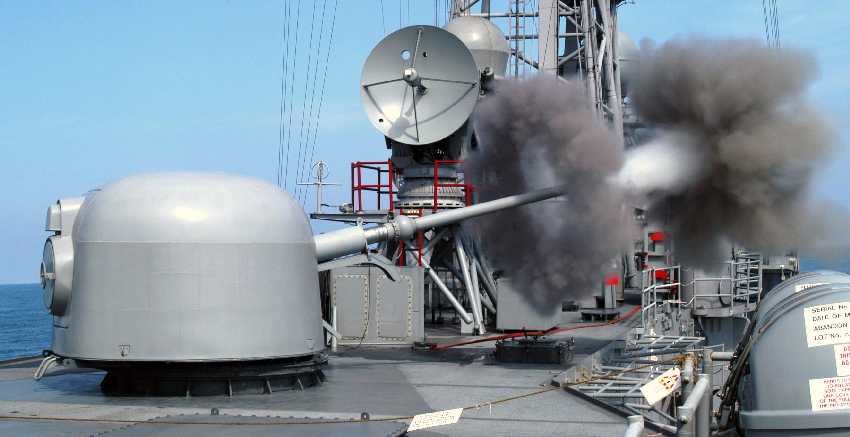

76 mm (3") Mark 75 aboard USS Curts FFG-38
in July 2003
Detail from US Navy Photograph No. 030718-N-4178C-002

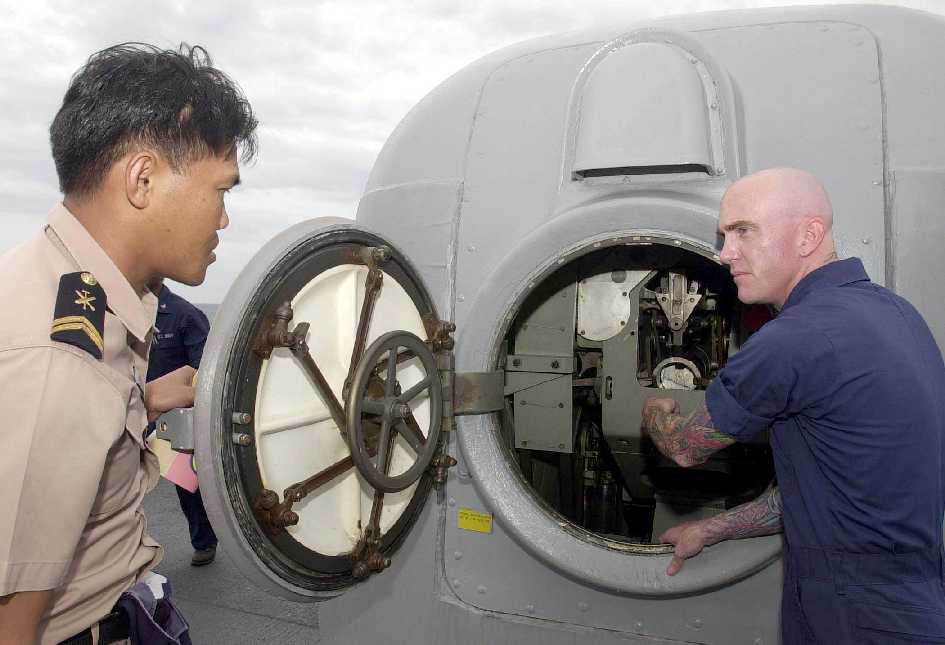

Rear of 76 mm (3") gun on USS Curts FFG-38
in June 2001
Royal Thai Navy (RTN) Chief Petty Officer
Second Class (PO2) Bunkurd Wannoo receives basic operating instructions
from US Navy (USN) Chief Gunners Mate (GMC) Richard McDonough
US Navy Photograph No. 010626-N-6077T-006
76 mm (3") muzzle brake on USS Curts FFG-38
in June 2001
Unidentified USN Oliver Hazard Perry class
frigate in background
US Navy Photograph No. 010626-N-6077T-008
MM Audace
Two 76 mm (3") Compact guns are along
the starboard side
Official Marina
Militare Italiana (Italian Navy) photograph

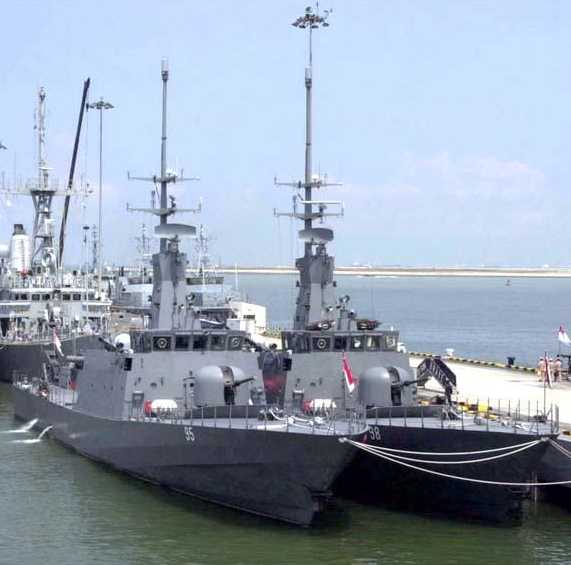

Compact guns on Singapore Patrol Boats
Brave (95) and Daring (98) in June 2001
The "radar mast" on Daring (98) is actually
a light pole on the dock behind her
Detail from US Navy Photograph No. 010613-J-9271Z-008

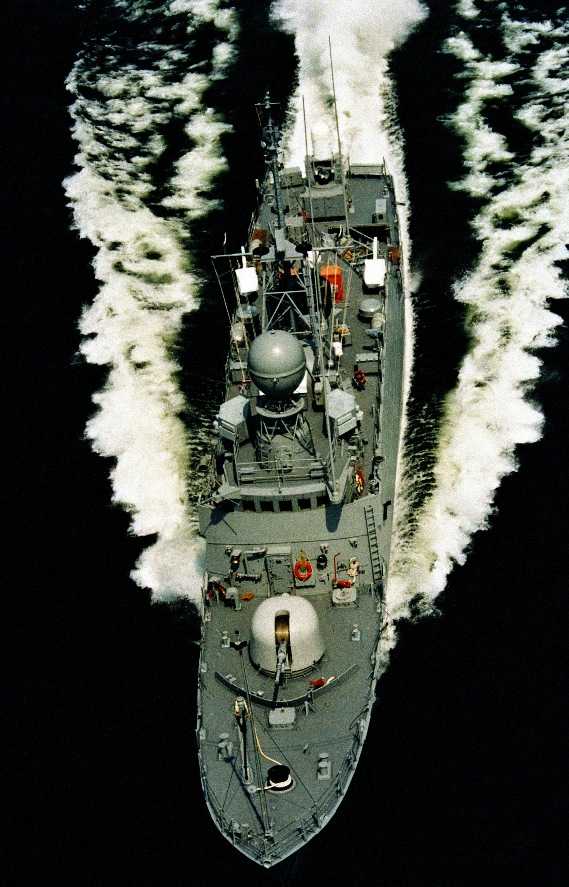

76 mm (3") Compact on Saudi Arabian Patrol
Boat Amr PGG-522 in 1982
Note the Phalanx
mount on stern
US Navy Photograph No. DN-SC-82-08857

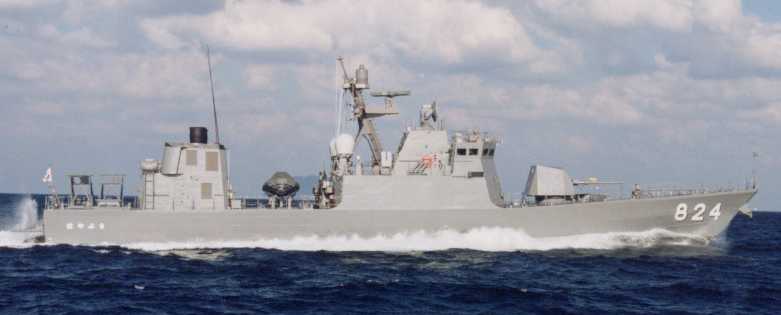

76 mm (3") SR low-RCS mounting on Japanese
Patrol Boat Hayabusa
Photograph courtesy of the JMSDF
76 mm (3") gun on an Australian Adelaide
Class Frigate
The unique double plume of smoke forms
as a result of the muzzle brake redirecting some of the propellant gasses
back towards the gun
Australian Navy Photograph No. FFG01-8098687-030605-008

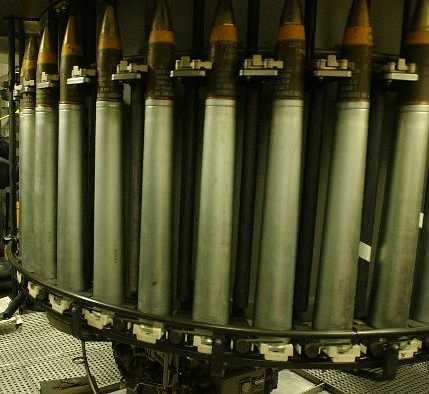

76 mm (3") Ammunition Stowage
USS Reuben James FFG-57 in October 2002
US Navy Photograph No. 021022-N-4309A-379

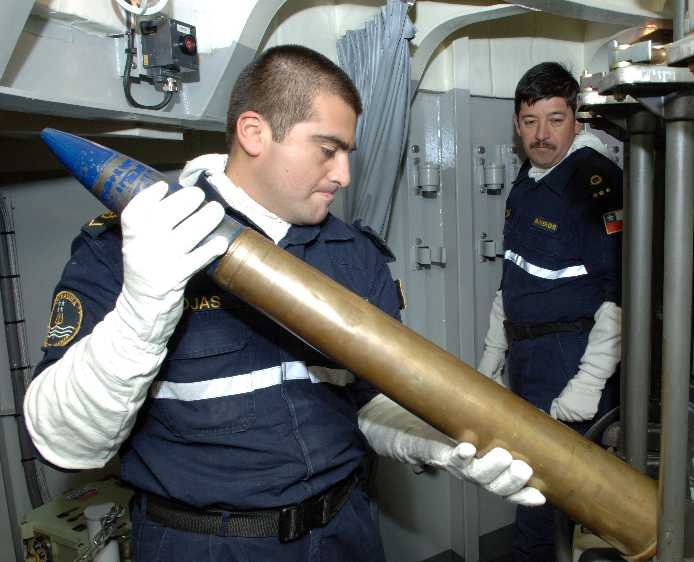

Loading a practice round aboard Chilean
Navy frigate CS Riveros (FF18) in July 2008
US Navy Photograph No. 080720-N-3931M-078

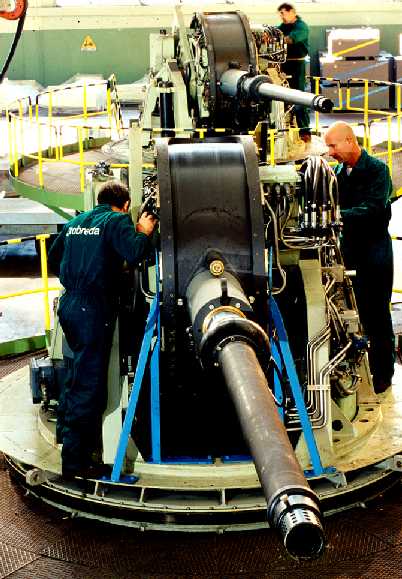

76 mm (3") guns being built at the OTO-Melara
Facility
Photograph copyrighted by Finmeccanica

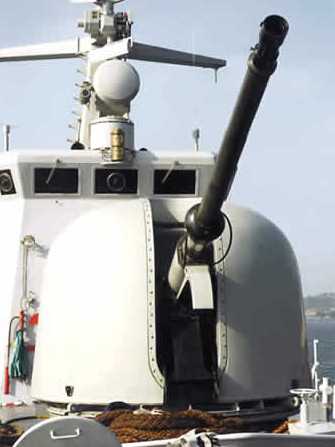

76 mm (3") Super Rapid (SR) Mounting
Image copyrighted by OTO-Melara

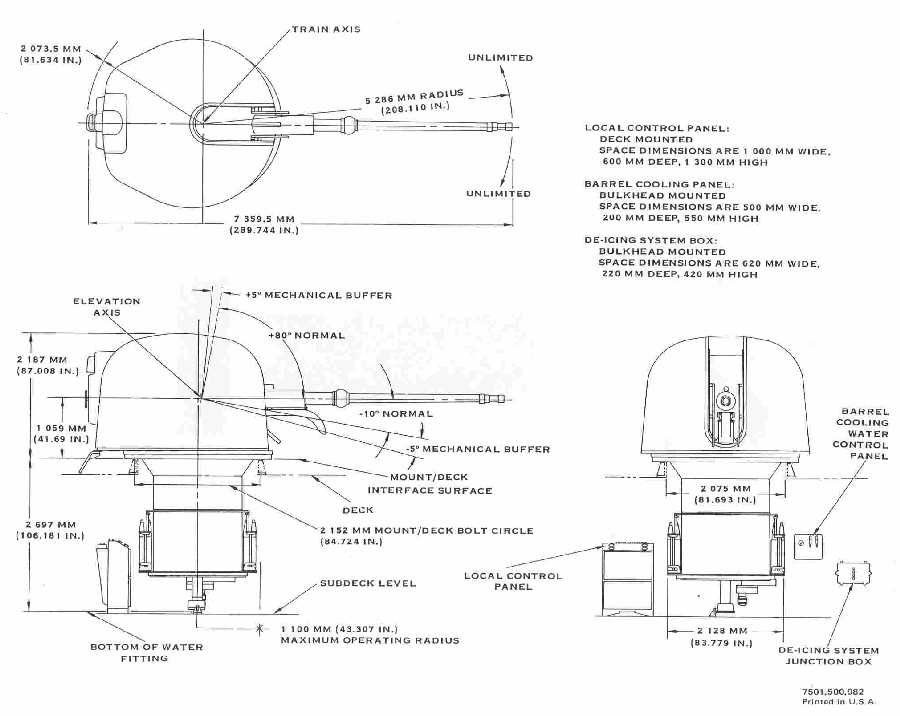

USN 76 mm (3") Mark 75 Sketch from General
Specification Sheet
Sketch copyrighted by United
Defense

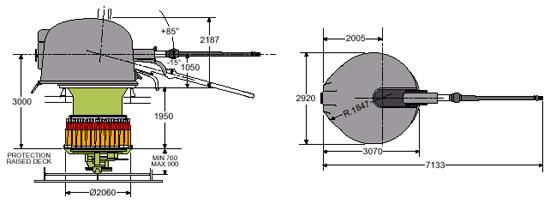

Sketch of Compact Mounting
Image copyrighted by OTO-Melara

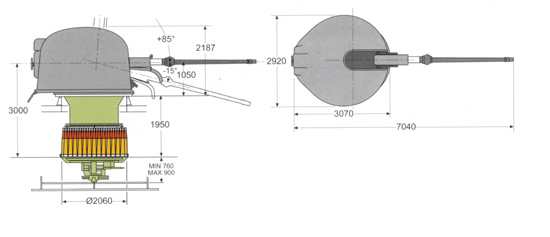

Sketch of SR Mounting
Note that the overall length is slightly
shorter than in the Compact mounting
Image copyrighted by OTO-Melara

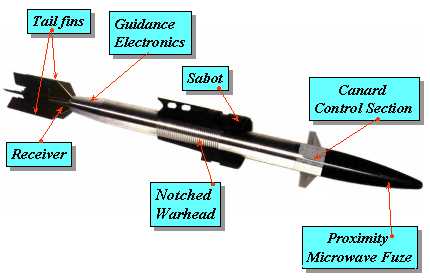

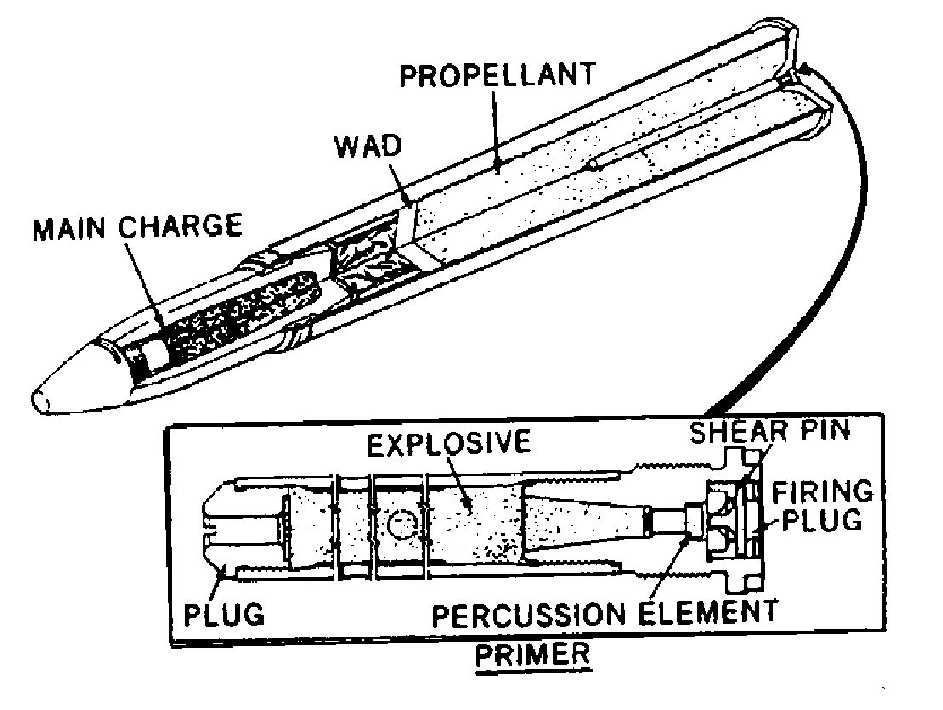

Cutaway view of USN Mark 145 Round
Anti-missile DART sub-caliber projectile
Image copyrighted by OTO-Melara

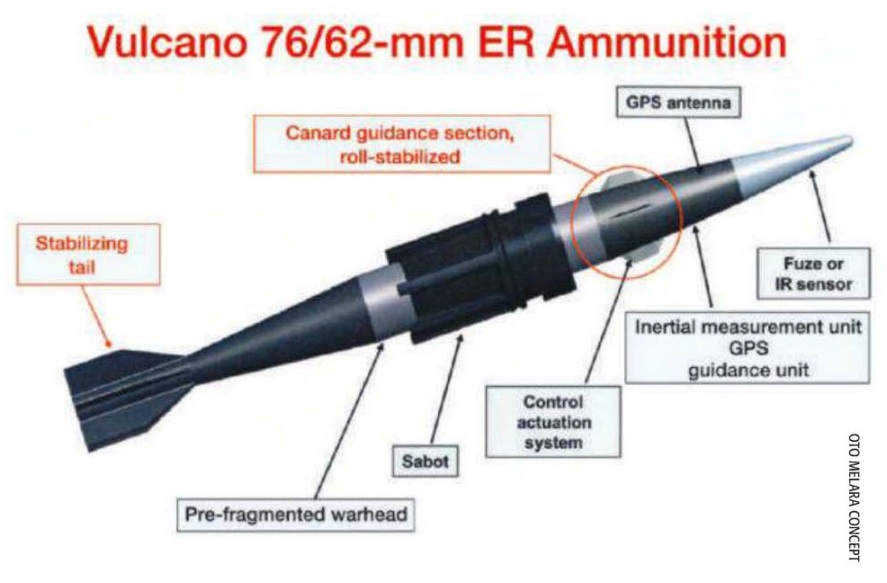

Vulcano 76 mm projectile
This is the proposed guided version, the
initial projectile will be unguided. See 127
mm/64 Datapage for other details.
Image copyrighted by OTO-Melara
