The AK-725 had twin water cooled ZIF-74 barrels, which were modified to use belt ammunition, thus allowing for longer firing periods before reloading. Compared to the ZIF-71, this new weapon could fire bursts twice as long and had 80% less cooling time between bursts. Each belt contains 550 rounds and the first round needs to be manually chambered. The AK-725 was controlled by the ESP-72 fire control system, which was itself controlled by the MP-103 Bars radar. In an emergency, the turret can be used manually via a simple optical gunsight. This mount was in production from 1961 to 1988. This weapon was not considered to be effective against anti-ship missiles, as was evidenced by a training accident in 1987 when a missile drone accidentally targeted the Small Missile Ship Musson. Musson was firing its AK-725 mount right up until the moment of impact, but was unable to hit the missile. The ship was destroyed by the resulting fire, with 39 crewmen killed. The barrel was of monobloc construction with vertical blade type breech. Recoil operated with water-cooled barrels. Both barrels were mounted on a common cradle. The turret itself is unarmored but was hermetically sealed with 6 mm (0.24 in) thick aluminum sides. |

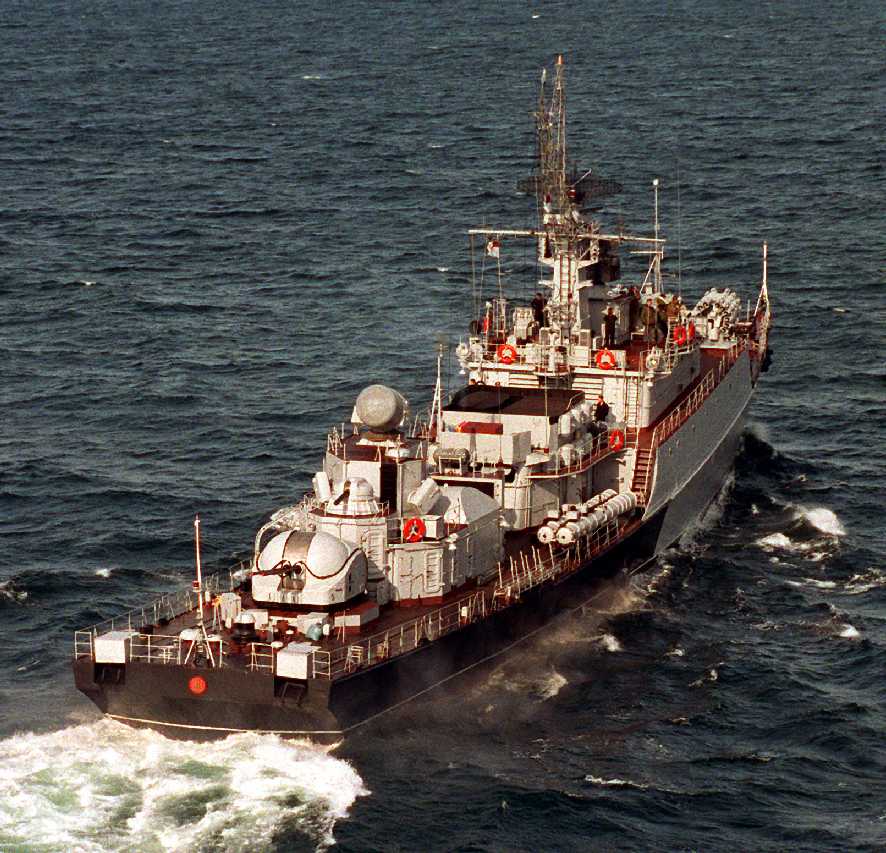

Lithuanian Grisha class frigate with twin
57 mm on stern in June 1993
|
57 mm/75 AK-725 mount |

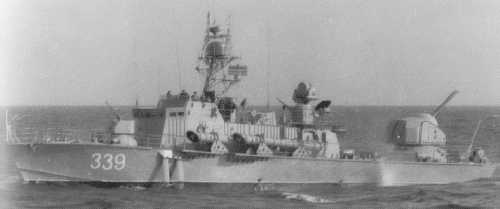

Turya class patrol ship with an AK-725
mount on stern
|
