These QFC guns were mounted from 1895 on the battleships of the Colossus class to the Sans Pareil and in cruisers of the Imperieuse, Aurora, Leander, Archer, Mersey and Medea classes. A few survived to serve on DAMS during World War I as pictured below and two were mounted at Ft. Bedford, Ascension Island. As detailed information for these guns is limited, rather than creating a page for each one, I have decided to combine them into a single page. In the designations shown below, the first mark number before the "/" represents the original BL designation and the number following the "/" represents the modification made to that particular BL Mark. |
Elswick conversion design. Modified chamber and used a short bore liner to the start of original liner, or further if the rifling was worn. The liner engaged screw threads cut on the breech piece and jacket and a breech ring was shrunk on over the rear of the jacket. |

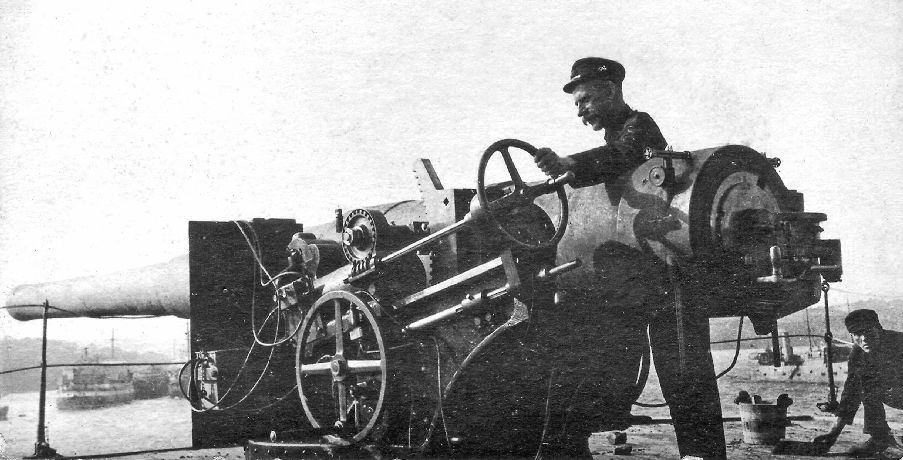

![]() 6"/26 (15.2 cm) Mark II/III gun in VCP
mounting on ex-Cunard liner HMTS Franconia
Photograph of "Great Uncle Sam" copyrighted by Jill Elton-Wall and used here by her kind permission |
Woolwich conversion design with the liner and breech bush being two separate components. The liner was secured by a screw collar at the rear end of the 'A' tube and extended to the start of the rifling, half way up the bore or to the muzzle, depending upon the wear. Breech ring added. |
Elswick conversion design. Like the Mark II, but different breech bush, pinned through the jacket, and a shorter breech ring. |
Elswick conversion design. Like the Mark II but with differences in the securing of the breech ring and liner. |
Gun weight was 5.107 tons (5.3 mt) for
most conversions.
Mountings were all of the Vavasseur type and comprised VB Mark IC (-6 / +12 degrees), VB Mark IIC and Mark IIIC (-7 / +16 degrees), VCP Mark IC (-7 / +16.5 degrees) and VCP Mark IIC (-7 / +20 degrees). A charge of 29.75 lbs. (13.5 kg) EXE gave a muzzle velocity of 1,913 fps (583 mps) and a range of 8,625 yards (7,890 m) at an elevation of 15 degrees. A charge of 13.25 lbs. (6.0 kg) Cord 30 gave a muzzle velocity of 2,061 fps (628 mps) and a range of 9,275 yards (8,480 m) at an elevation of 15 degrees. The Royal Sovereign class carried 200 rounds per gun upon completion. During design, it had been planned to carry about 150 rounds per gun, which would have been made up of 10 AP, 38 Palliser, 128 Common and 24 Shrapnel. |
Range |
|
0 yards (0 m) |
|
200 yards (180 m) |
|
Data from "Warship Volume IV" article by R.A. Burt. |
Range |
|
1,000 yards (910 m) |
|
Data from "British Battleships: 1860 - 1950" by Oscar Parkes. |
