12-pdr [3"/45 (76.2 cm)] 20cwt QF HA Marks I, II, III and IV
Updated 15 December 2013
Britain's first designed-for-the-purpose AAA weapon.  Developed under Royal Navy sponsorship just prior to World War I, this gun was widely used by both the Navy and the Army and was employed to protect many British cities during that conflict.  First mounted afloat on HMS Iron Duke and subsequently used on most major warships and on some submarines.  Replaced in the 1920s by the 4"/45 (10.2 cm) Mark V on larger warships.

During World War II this weapon was used on many destroyers in place of a set of torpedo tubes as well as on small warships.

The Mark I consisted of A tube, full length wire, jacket, breech ring, and a vertical sliding breech-block with semi-automatic action.  Mark I* had different rifling.  Mark IB had loose liner, full-length jacket and a removable breech ring.  Mark IC was similar to IB but differed in details of the loose liner.  Mark IC* was given to four guns with a muzzle bush instead of a loose liner sealing ring.  There was apparently no Mark ID.  Mark IE had a monobloc barrel and a screwed and shrunk breech ring.  Mark SIE was a Mark IE but with the semi-automatic fittings removed, a balance weight added, a slightly different chamber and some parts were made from stainless steel, probably to allow its use on submarines.  Mark II had different breech ring lugs for mounting purposes and no semi-automatic gear.  Mark III was an emergency First World War design with parallel screw breech block and a two motion breech mechanism.  Mark IV was similar to the Mark III but used a Welin block with an Asbury breech mechanism.  Mark IVA was given to two Mark IV guns converted to use a loose liner.  All marks fired fixed ammunition.

The Navy had a total of 596 Mark I, 198 Mark II, 44 Mark III and 144 Mark IV in service.  Of these, 553 Mark I, 186 Mark II, 27 Mark III and 111 Mark IV remained as of September 1939.

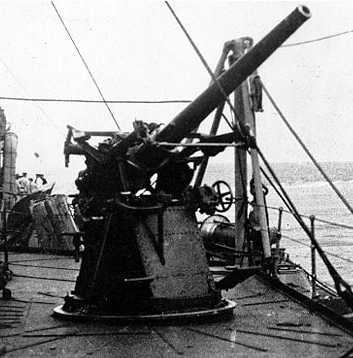

3"/45 (7.62 cm) 20cwt on unidentified British warship about 1918
Detail from U.S. Naval Historical Center Photograph # NH 42200

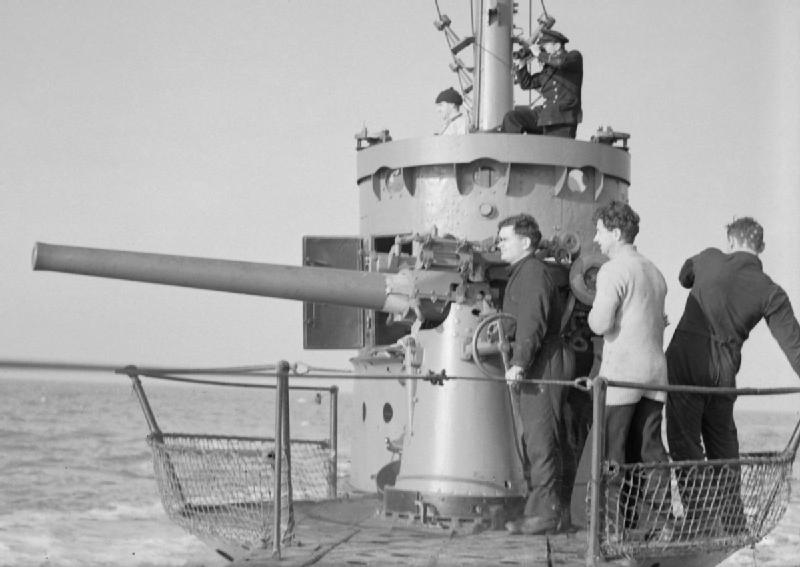

3"/45 (7.62 cm) gun on HMS Sunfish during World War II
IWM Photograph A 20288

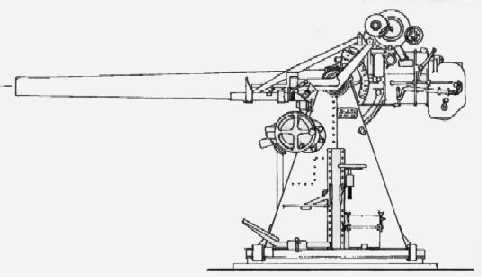

3"/45 (7.62 cm) Mark I gun on Mark IVA Mounting
Sketch by John Lambert
.
Images at The Vickers Photographic Archive

See 12 pounder and CP

.
.
Gun Characteristics
.
Designation 3"/45 (76.2 cm) 20cwt QF HA Mark I
Ship Class Used On First used on Iron Duke
Many capital ships and cruisers 1913-1925

Destroyers of the "A" through "I" classes (1940s)
Minor warships of World War II
"S" and "U" class submarines
DEMS
Date Of Design about 1910
Date In Service 1913 (as AAA)
Gun Weight 2,248 lbs. (1,020 kg)
Gun Length oa 143 in (3.630 m)
Bore Length 135 in (3.3750 m)
Rifling Length 117.5 in (2.98 m)
Grooves (20) 0.0375 in deep x 0.3137 (0.953 x 7.968 mm)
Lands 0.1575 in (4.001 mm)
Twist
(see Note)		 Most Mark I variations:  Uniform RH 1 in 30
Mark I*:  Uniform RH 1 in 40
Chamber Volume 152.9 in3 (2.51 dm3)
Rate Of Fire 12 - 14 rounds per minute
Note:  The Mark I* was to be used only if absolutely necessary.
.
Ammunition
.
Type Fixed
Weight of Complete Round The heaviest round was 28.3 lbs. (12.8 kg)
Projectile Types and Weights World War I HE:  12.5 lbs. (5.67 kg)
World War II HE:  16 - 17.5 lbs. (7.26-7.94 kg)
Bursting Charge N/A
Projectile Length N/A
Propellant Charge World War I:  2.12 lbs. (0.96 kg) MD
World War II:  2.11 lbs. (0.96 kg) SC048 or 2.72 lbs. (1.23 kg) NF052
Muzzle Velocity With 12.5 lbs. (5.67 kg):  2,500 fps (762 mps)
With 16.0 lbs. (7.26 kg):  2,024 - 2,100 fps (617 - 640 mps)
Working Pressure 18 tons/in2 (2,830 kg/cm2)
Approximate Barrel Life 1,250 rounds
Ammunition stowage per gun Courageous:  150 rounds
Caledon, Ceres and Carlisle classes:  150 rounds
Danae and Hawkins classes:  300 rounds
Monitors of World War I:  200 rounds
Others:  N/A
Notes:

1) Outfits were mostly HE and star shell, but some lighter ships carried shrapnel rounds.

2) In 1931 it was estimated that the HE shell for this gun against aircraft had a lethal volume 21 feet long by 39 feet in diameter (6 x 12 m).
.
Range
.
Elevation With 12.5 lbs. (5.67 kg) HE Shell
Range @ 45 degrees 10,900 yards (9,970 m)
AA Ceiling (maximum) 37,200 feet (11,340 m)
AA Ceiling (effective) 23,500 feet (7,160 m)
Elevation With 17.5 lbs. (7.94 kg) HE Shell
Range @ 40 degrees 12,950 yards (11,810 m)
AA Ceiling (maximum) 25,200 feet (7,680 m)
AA Ceiling (effective) 15,700 feet (4,790 m)
.
Mount / Turret Data
.
Designation AAA:  HA Marks II, III and IV
Submarines:  CPV
Weight  6,310 lbs. (2,862 kg)
Elevation PI:  N/A (probably about -10 / +30)
HA Mounts:  -10 / +90 degrees
CPV:  -10 / +40 (+30 in some) degrees
Elevation Rate Manually operated, only
Train 360 degrees
Train Rate Manually operated, only
Gun recoil HA Mounts:  11 in (28 cm)
CPV:  13 in (33 cm)

Data from
"Nelson to Vanguard:  Warship Design and Development 1923-1945" by D.K. Brown
"Big Gun Monitors:  The History of the Design, Construction and Operation of the Royal Navy's Monitors" by Ian Buxton
"Naval Weapons of World War Two" by John Campbell
"Destroyer Weapons of World War 2" by Peter Hodges and Norman Friedman
"The Weird Sisters" article by Keith McBride in "Warship 1990"
"British Cruisers of World War Two" by Alan Raven and John Roberts
---
Special help by John Lambert
