Britain 16.25"/30 (41.2 cm) Mark I

Britain
16.25"/30 (41.2 cm) Mark I
Updated 11 February 2012

Also known as "the Elswick 110 ton gun." These were some of the largest breech loaders ever constructed, although they were of limited usefulness as their very heavy weight meant that only two guns of this size could be carried on each ship. The very heavy projectiles and large amount of powder required to fire them also meant that these guns had a slow rate of fire. In hindsight, this gun was too ambitious for a time when smaller 12 and 13.5 inch (30.5 and 34.3 cm) guns had many constructional problems.

The following description is from "British Battleships" by Parkes:

"During proof at Woolwich one of the Victoria's guns was found to have bent, and when again submitted for acceptance was put through a long series of trials which brought out other defects. It was therefore rejected and replaced by one specially strengthened, which served as a model for those in the Sans Pareil and held up her commissioning by a further sixteen months. The 110-ton gun was never tested to destruction, and although supposed to have a life of seventy-five rounds, this estimate was often questioned. It was a slow firer, never made good shooting, and proved costly to repair and reline."

The differences between the twelve guns constructed were so large that the "Mark I" designation was abandoned and they were known individually by their serial numbers. Number 1 and 2 guns were made of A tube/breech piece - the breech attached to this section - 17 hoops extending to the muzzle, 1 long hoop and 10 short hoops/8 hoops/7 hoops. All parts were made of steel forgings. The later guns were only slightly less complicated.

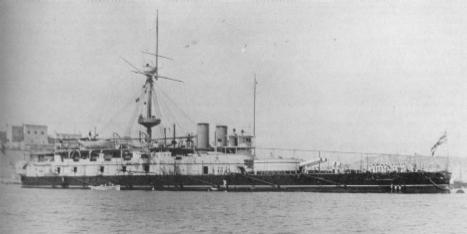

HMS Victoria at Malta in 1890
NMM photograph

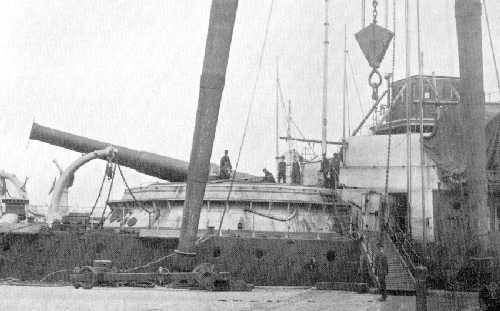

Forward 16.25"/30 (41.2 cm) gun on HMS Benbow
Picture courtesy of Bob Cordery of Colonial Wargamming

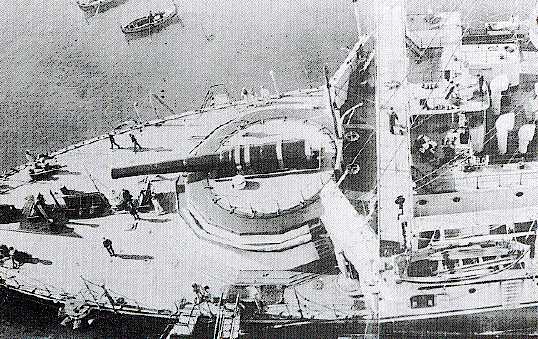

Same gun on HMS Benbow as viewed from above
U.S. Naval Historical Center Photograph - ID Number unknown

. Other images at Australian War Memorial

Picture of British Ammunition ca. 1900 including 16.25" (41.2 cm)
Picture ID Number P01075.019

Gun Characteristics .

Designation	16.25"/30 (41.2 cm) Mark I
Ship Class Used On	Benbow and Victoria classes
Date Of Design	about 1885
Date In Service	1888
Gun Weight	110 tons (112 mt) inc. breech
Gun Length oa	523.2 in (13.298 m)
Bore Length	488 in (12.383 m)
Rifling Length	N/A
Grooves	N/A
Lands	N/A
Twist	N/A
Chamber Volume	N/A
Rate Of Fire	0.29 - 0.33 rounds per minute

Ammunition .

Type	Bag
Projectile Types and Weights	AP - 1,800 lbs. (816 kg) Common - 1,800 lbs. (816 kg) Shrapnel - 1,800 lbs. (816 kg)
Bursting Charge	AP - N/A Common - 187.5 lbs. (85 kg) black powder Shrapnel - N/A
Projectile Length	AP - 43.57 in (110.7 cm) Common - 55 in (139. 7 cm) Shrapnel - 55 in (139. 7 cm)
Propellant Charge	960 lbs. (435 kg) SBC (slow burning cocoa)
Muzzle Velocity	2,087 fps (636 mps) [new gun]
Working Pressure	17 tons/in²(2,680 kg/cm²)
Approximate Barrel Life	104 rounds
Ammunition stowage per gun	See Note 2
Notes: 1) The propellant was in eight bags. 2) Outfit in Benbow was 37 AP, 44 Common, 11 Shrapnel. Other ships had 32 AP, 38 Common and 10 shrapnel. 3) The shrapnel shell carried 2,330 iron shot pellets of 4 oz (113 gm) each.

Range .

Elevation	With 1,800 lbs. (816 kg) Projectile
Range @ 13 degrees	12,400 yards (11,340 m)

Armor Penetration with 1,800 lbs. (816 kg) Projectile .

Range	Vertical Iron Plate
1,000 yards (9,140 m)	32 in (81.3 cm)
This data from "British Battleships: 1860 - 1950."

Mount / Turret Data .

Designation	Single Barbette Mounting Benbow (2) Twin Mounting Victoria (1)
Weight	N/A
Elevation	- 5 / +13 degrees
Rate of Elevation	N/A
Train (see Note)	about +30 to 120 / -120 to -30 degrees
Rate of Train	N/A
Gun Recoil	N/A
Loading Angle	N/A
Note: The turret on Victoria was only 15 feet (4.5 meters) above the waterline while the barbette mountings on Benbow were 22 feet (7 m) above the waterline. In theory, the twin turret had a firing arc of more than 300 degrees but the reality was that the deck buckled during ahead firing and the superstructure was considerably shaken when the turret was much abaft the beam. The blast-free arcs are thus thought to be closer to the numbers given above.

Data from
"Warrior to Dreadnought: Warship Development 1860-1905" by D.K. Brown
"British Super-Heavy Guns Part 2" article by John Campbell in "Warship Volume III"
"The Big Gun: Battleship Main Armament 1860-1945" by Peter Hodges
"British Battleships: 1860 - 1950" by Oscar Parkes
